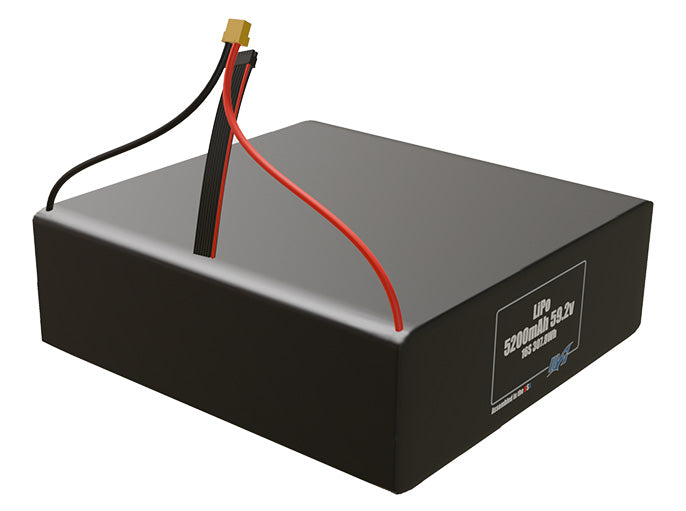

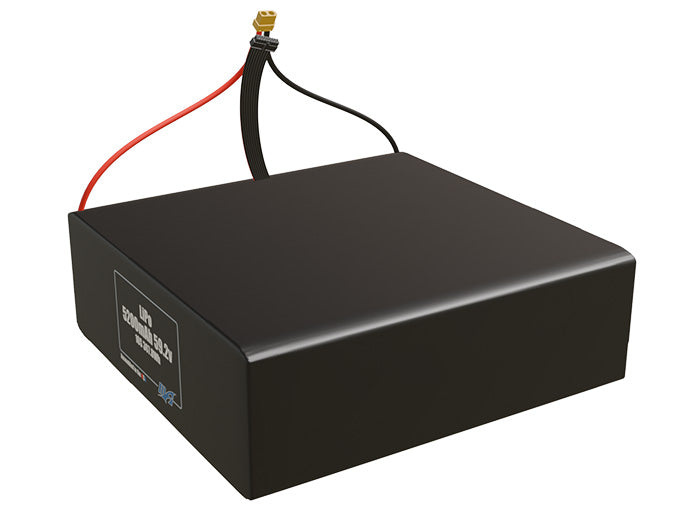

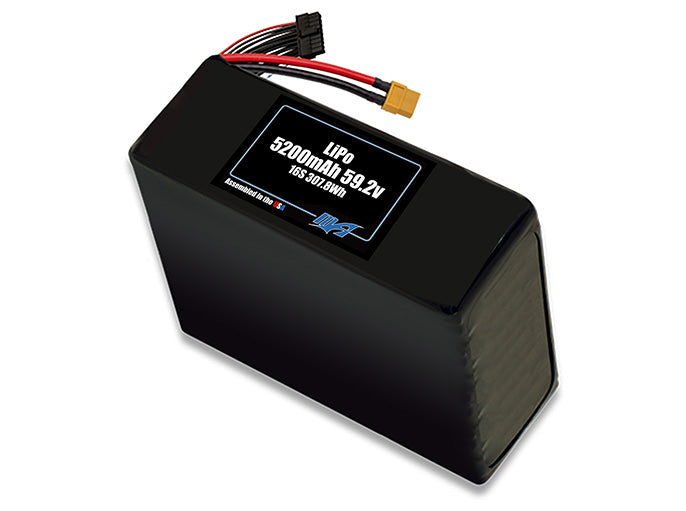

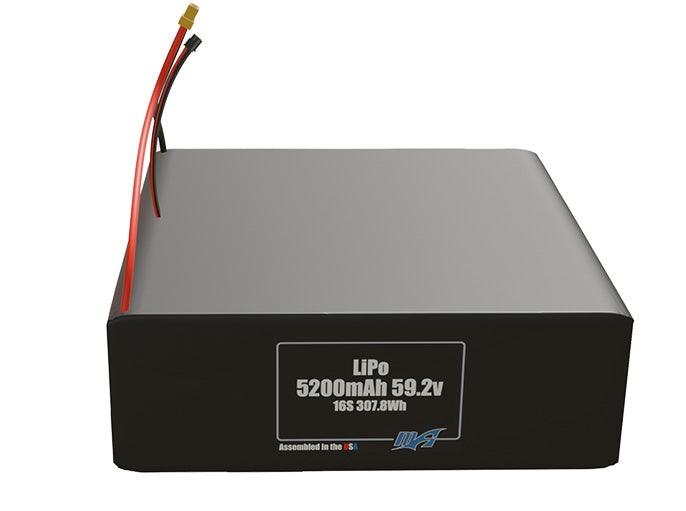

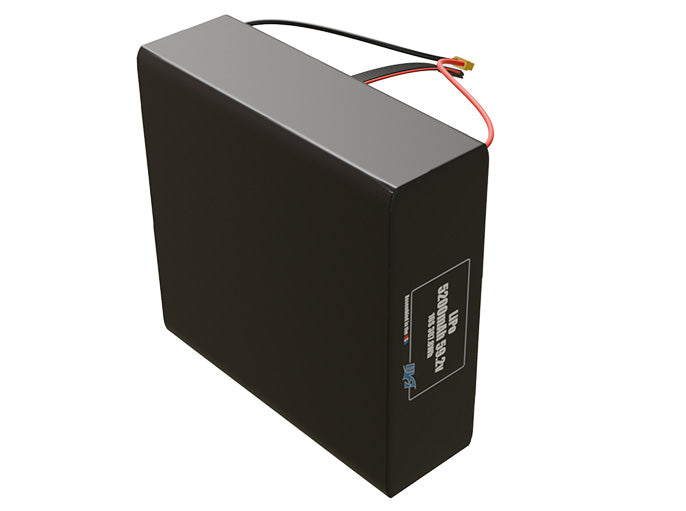

Graphene LiPo 5200 16S 59.2v Battery Pack
Get an edge on the competition with our powerful 175C rated Graphene LiPo batteries. This new graphene technology provides incredible benefits including:
- High power energy density
- Low internal resistance
- High discharge rate
- Long cycle life from improved electrical and thermal energy
- Better charge retention
- Nominal capacity: 5200mAh
- Nominal voltage: 16S 59.2 volts
- Maximum voltage: 67.2 volts
- Minimum voltage: 48 volts
- Recommended landing voltage: 56 volts
- Chemistry: Lithium-Polymer
- Maximum constant discharge: 227.5 amps
- Maximum charge current: 26 amps
- Watt hours: 307.8 Wh
- Energy Density: 159 Wh/Kg
- 175C rating
- Main lead and balance tap wire length is 7.00" (custom lengths available upon request)

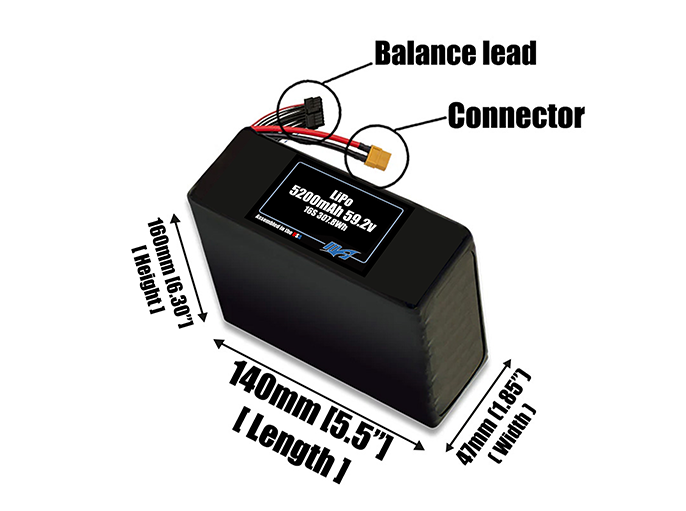

- 138mm x 45mm x 148mm, 1936g
- Lifetime warranty
- 5C fast charge capable
- 100% waterproof
- Built today with factory fresh cells
- Engineered drawings available upon request
- Built with high-grade silicone jacket wire. Wire gauge determined by plug choice.
- We install the connector of your choice
- We install the Molex Micro Fit 3.0 balancing lead(compatible with X16 charger)
Smart Battery Upgrade
- Lightest Smart Battery available on the market(adds less than 10 grams to the weight of the battery)
- Very small profile(adds less than 6mm to length of battery)
- SOC(state of charge)/SOH(state of health) gauge with momentary on switch
- Battery status indicator(fuel gauge)
- No power consumption while not in use
- Bright green/red LED lights for sunny days
Lifetime Battery Warranty
MaxAmps offers a one-time, non-transferable lifetime warranty on any defective battery. Replacements only apply to products purchased from MaxAmps and does not cover any other loss.
- DO NOT USE WITH UNPROTECTED DEVICE
- ALWAYS USE A PROTECTIVE CASE OR BOX FOR STORAGE AND TRANSPORT
- BATTERIES MAY EXPLODE, BURN, OR CAUSE A FIRE IF MISUSED OR MISHANDLED
- ONLY use with proper protection circuitry
- DO NOT short circuit intentionally or unintentionally
- KEEP AWAY from metal/conductive objects to prevent short circuiting
- DO NOT use if battery, wrapper or terminal insulator is damaged or torn
- DO NOT over-charge or charge above the maximum voltage rating
- DO NOT over-discharge or exceed the continuous discharge rating
- DO NOT modify, disassemble, puncture, cut, crush, or incinerate
- DO NOT expose to liquids or high temperatures
- KEEP AWAY from pets and children
- ALWAYS charge in or on a fire-proof surface and never leave batteries charging unattended
- ONLY use a smart charger designed for this specific type of battery
- DO NOT mix and match brands and models, old and new, used and unused batteries
- STOP immediately if while charging/storing/using the battery it emits an unusual smell, feels hot, changes color or shape, or appears abnormal in any way
- It is your responsibility to determine that your charger or device is functioning properly
- If exposed to battery electrolyte, flush with water immediately and/or immediately contact a physician or emergency services
- DO NOT throw away in the trash; contact your local jurisdiction for proper recycling or disposal
